Description:

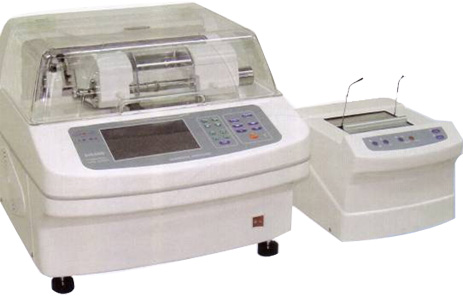

High quality wheel and motor equipped,this machine could do polishing,grinding and V-shape work on CR-39 lenses,glass lenses and PC lenses. The main technical standard is up to the imported product of the same kind.Both the edging accuracy and the processing fineness are at the leading position among the Chinese edgers. The Sand Wheels were made with imported material with good performance for Glass lens, CR lens and PC lens. All the edging processes are done by the single Edger. The Petternless Edger and the Tracer are two separated bodies, easy for maintenance. The mode of Optical centering makes the installation of sucker very easy to operate. The display shows the actual size and the shape of the lens being processed. This is particularly helpful for the beginner. Automatic initialization and setting. The sophisticated computer controlling system ensures the edging reliability and accuracy.
Specification:
Lens material: |
PC, Glass and CR. |
Frame type: |
Frame, Brimless and Half brim. |
Lens size: |
Maximum 100 mm; Minimum 18mm ( Flat edge ); 20 mm ( V edge ) |
Size of LCD: |
152X92 |
Size of the machine: |
500X560X430mm |
Weight: |
51kgs(main machine) |
Voltage: |
220V-50HZ; 110V-60HZ |
Power: |
660W |
Water supply: |
City water or closed circulating water. |
Tracer:
1.Automatic initialization
2.automatic setting
3.automatic testing
4.automatic couting
5.special method for frame positioning and automatic gripping
6.automatic calculation for the minimum lens-diameter required
7.automatic measurement of the distance between the two eyes of the frame
8.suitable for both frame and pattern
9.voltage: 220V/50Hz,or 110V/60Hz
10.Power: 100W
11.Size of the machine: 280X310X220
12.weight: 11kgs.
Packing details:
1st box---main machine: |
53kgs, 67X67X57cm |
2nd box---tracer: |
11.5kgs,45X35X35cm |
3rd box---table: |
53kgs,115X79X22cm |
4th box---accessories: |
9kgs,55X34X35cm |
|
